Quick answer: choose by material and machine first, then confirm diameter, thickness or kerf, centre bore and maximum RPM. For toothed saw blades, also match the tooth count and blade application to the finish you need.
Quick Selection Guide
| Job | Recommended accessory | Example marking | What to confirm |
|---|---|---|---|

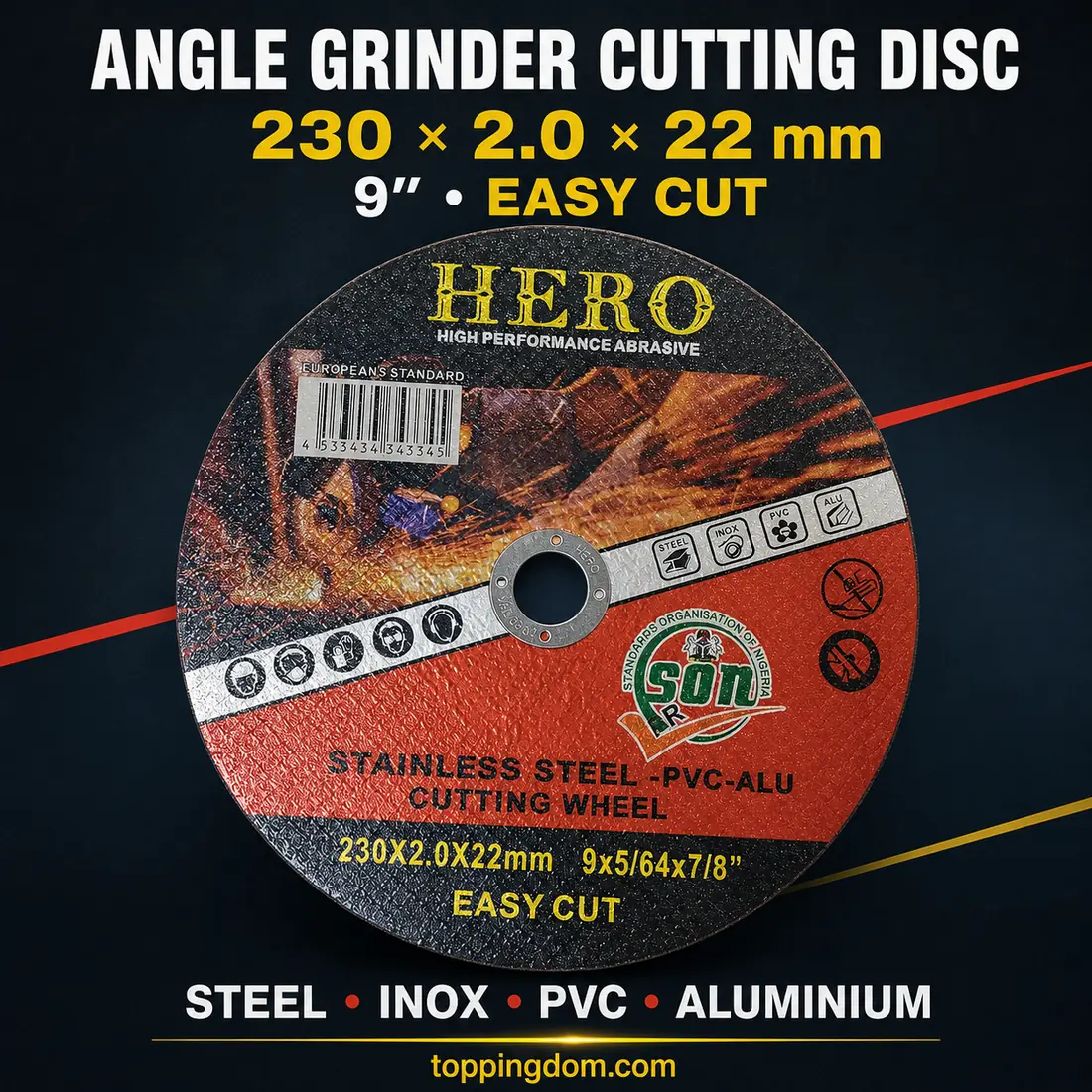

| Cut steel, rebar, pipe or angle iron with an angle grinder | Thin abrasive metal cutting disc | 230 × 2.0 × 22 mm | Material approval, bore, tool guard and RPM |

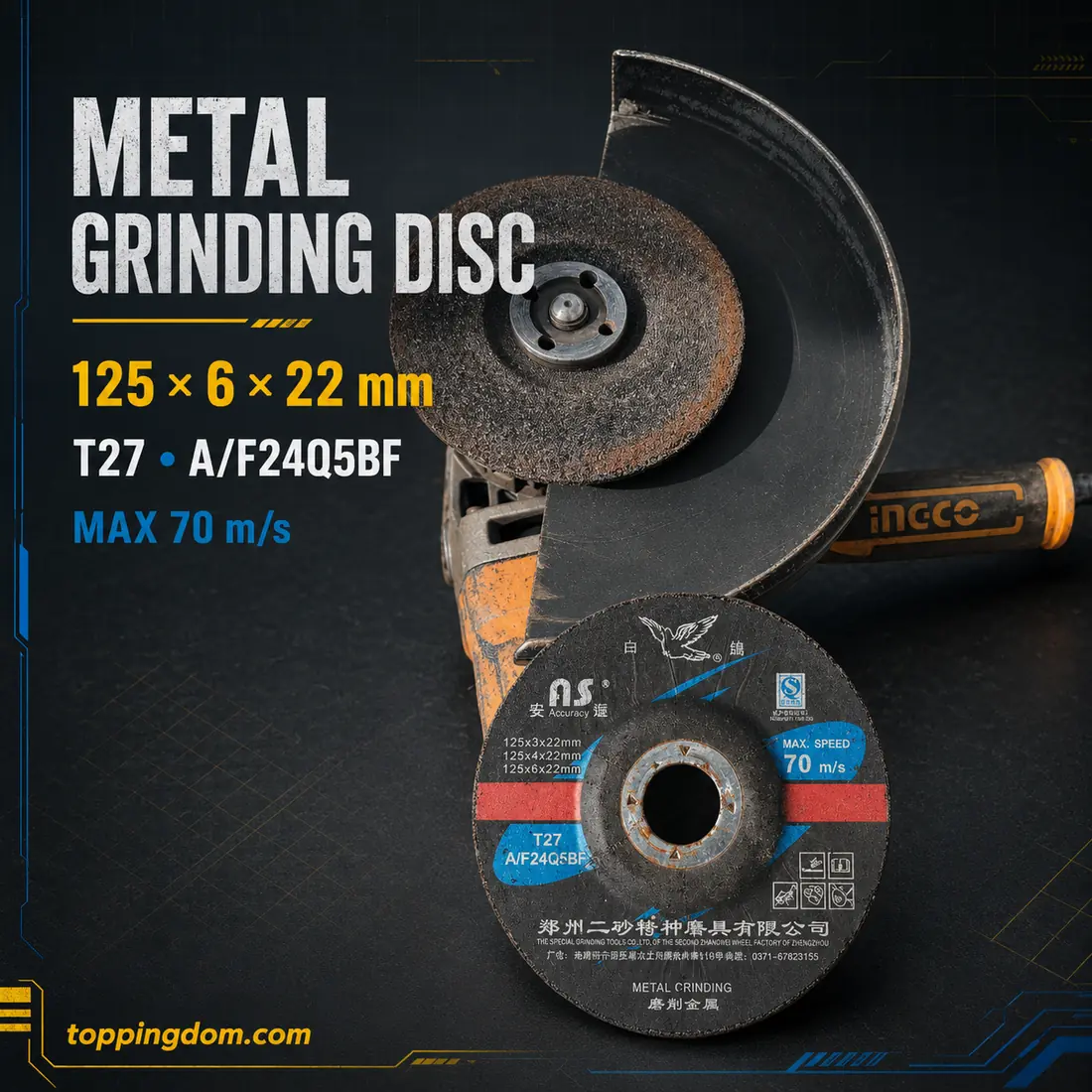

| Remove welds, bevel edges or grind metal | Thicker Type 27 grinding disc | 125 × 6 × 22 mm; T27 | Never substitute a thin cutting disc |

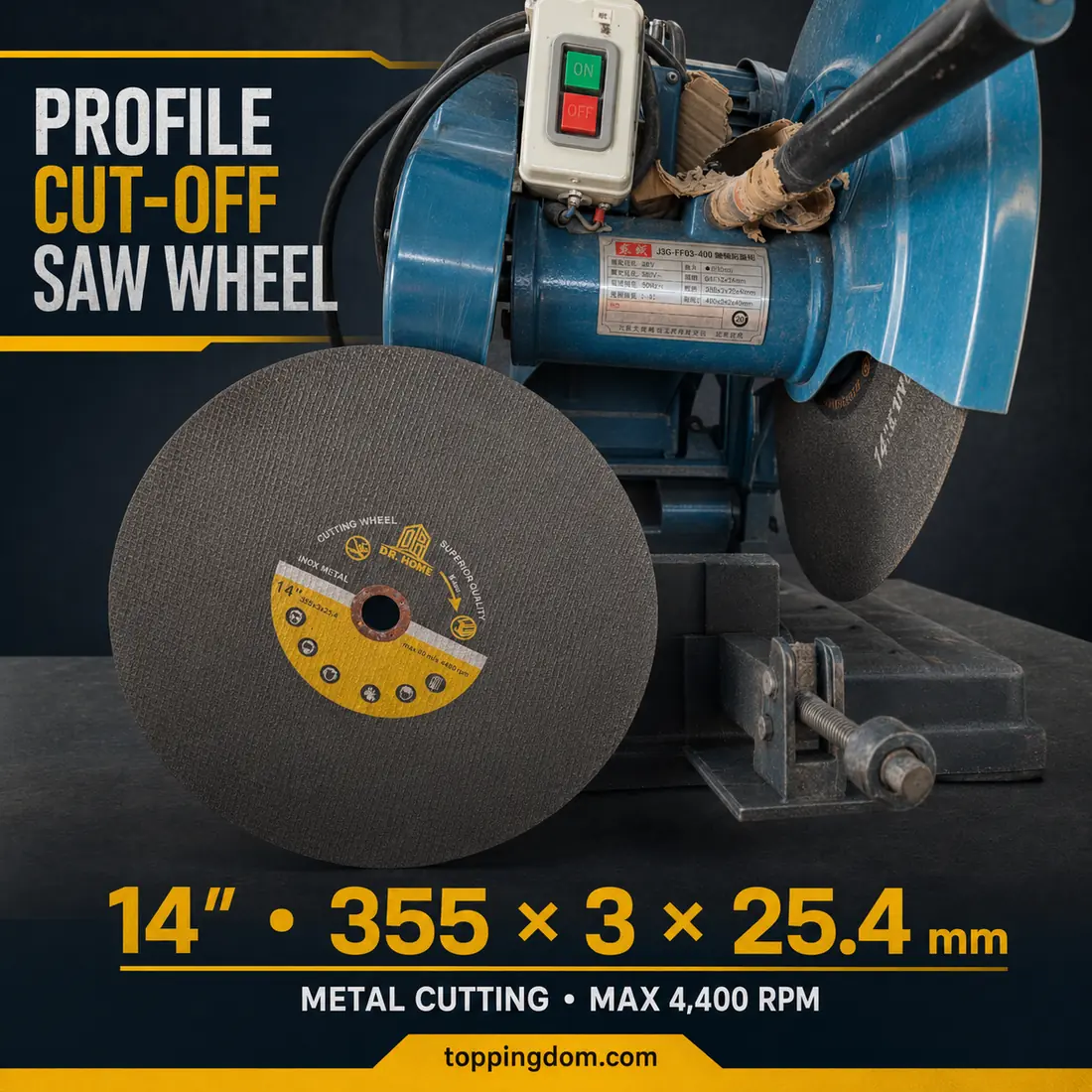

| Cut steel profiles on a bench cut-off saw | Resin-bonded cut-off wheel | 355 × 3 × 25.4 mm | Machine plate, wheel diameter, arbor and RPM |

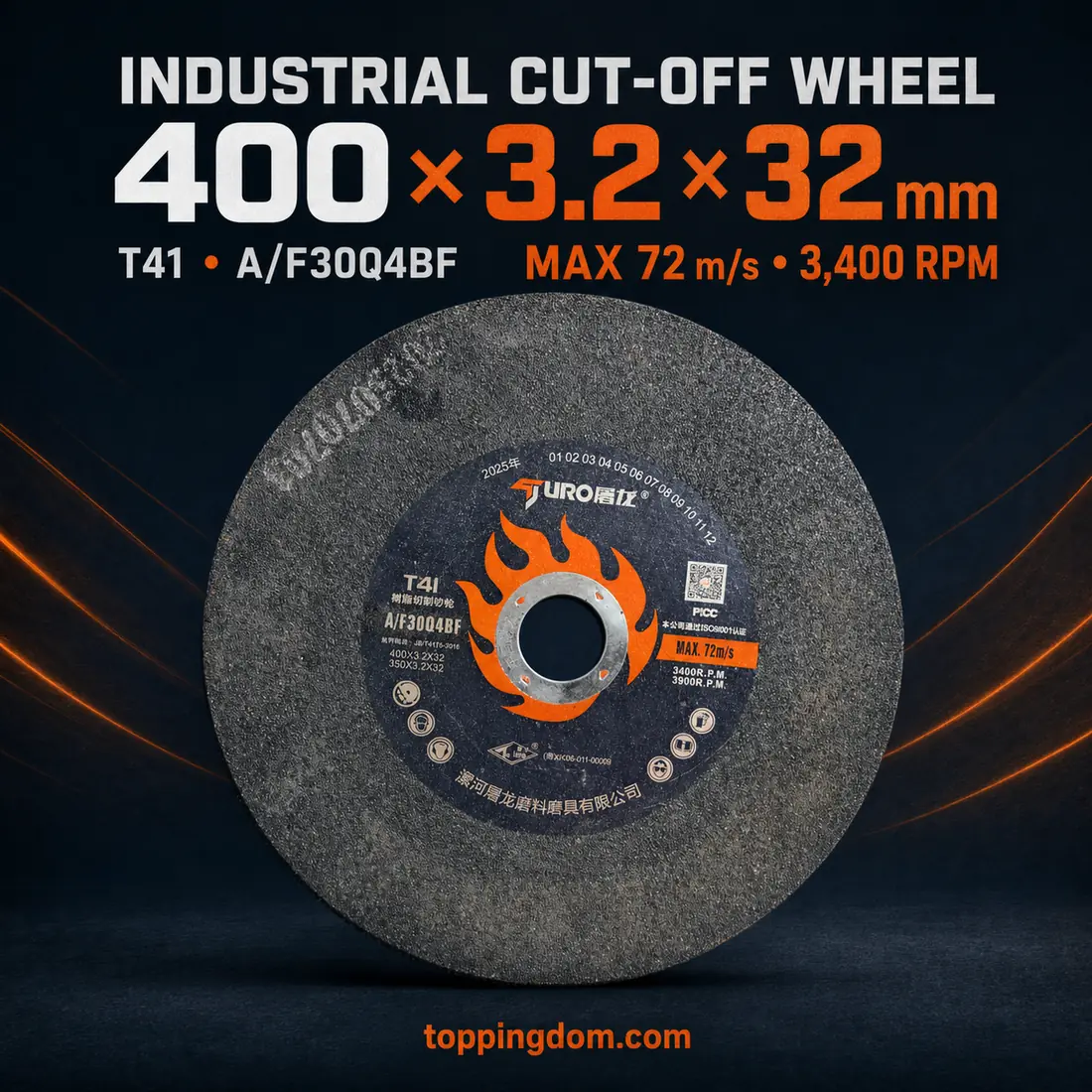

| Heavy industrial cut-off machine | Large Type 41 cut-off wheel | 400 × 3.2 × 32 mm; T41 | Guard capacity, spindle size and maximum speed |

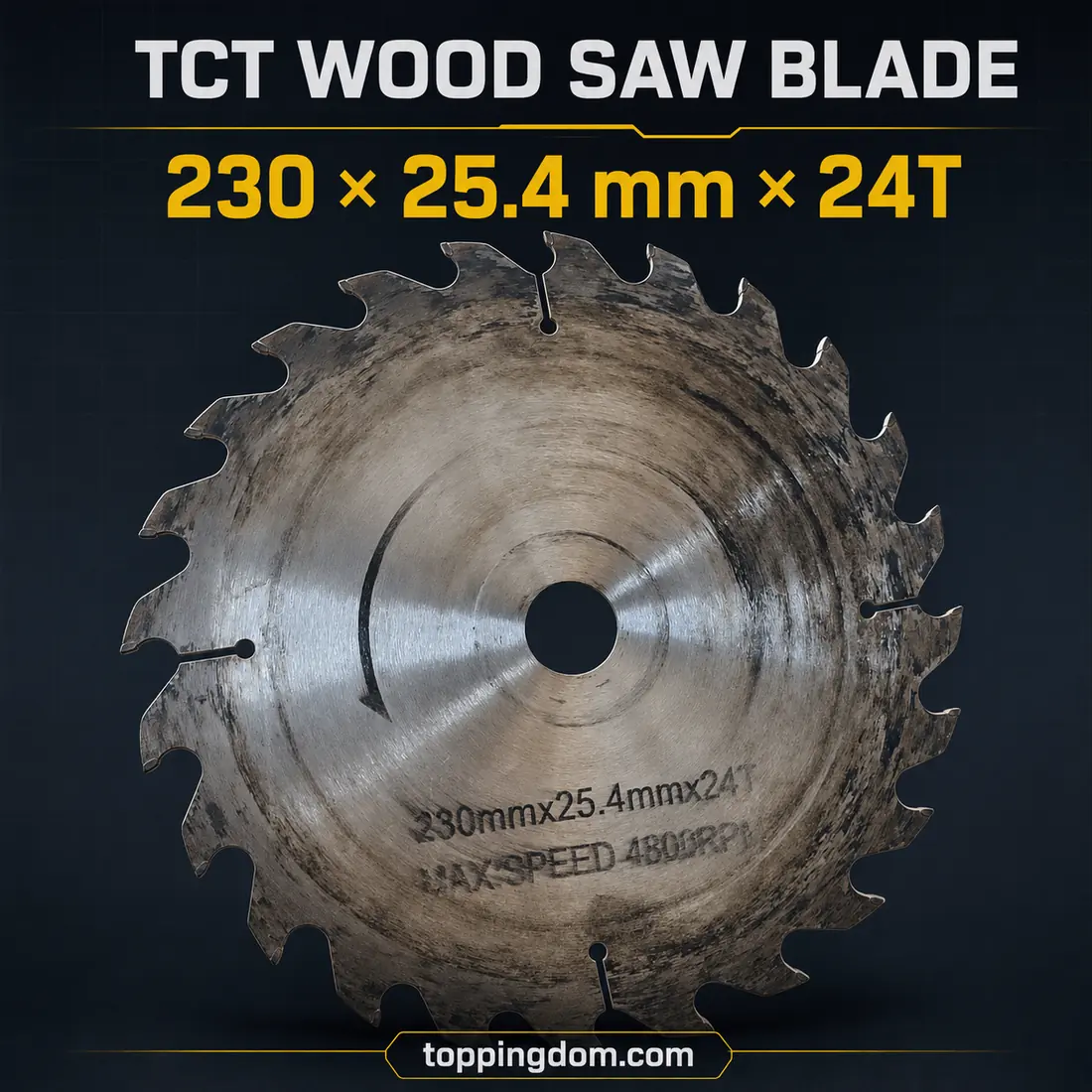

| Fast ripping or rough wood cutting | Lower-tooth-count TCT wood blade | 230 × 25.4 mm × 24T | Wood application, bore, rotation and RPM |

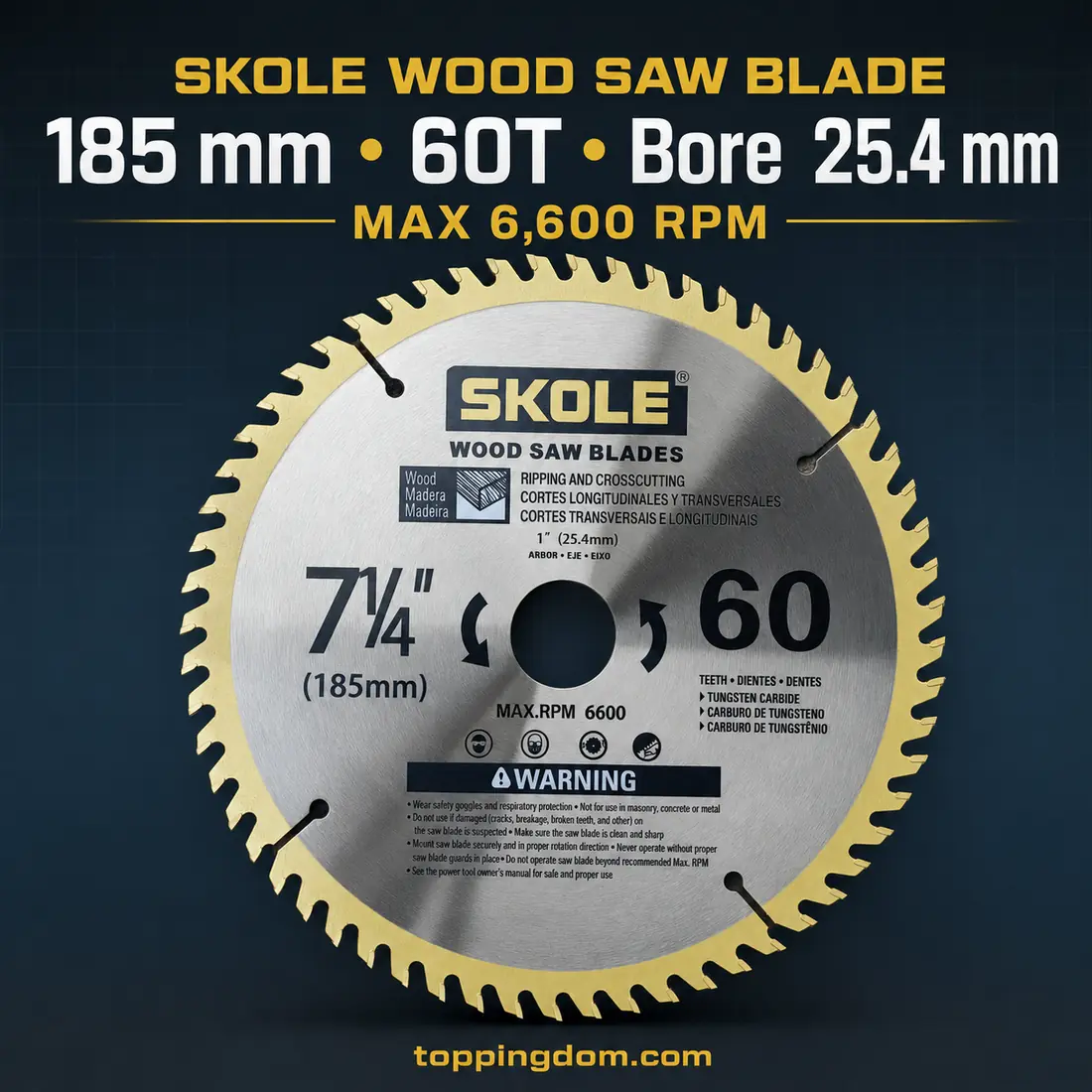

| Cleaner crosscuts in wood or panels | Higher-tooth-count TCT saw blade | 185 mm; 60T; 25.4 mm bore | Blade application and machine compatibility |

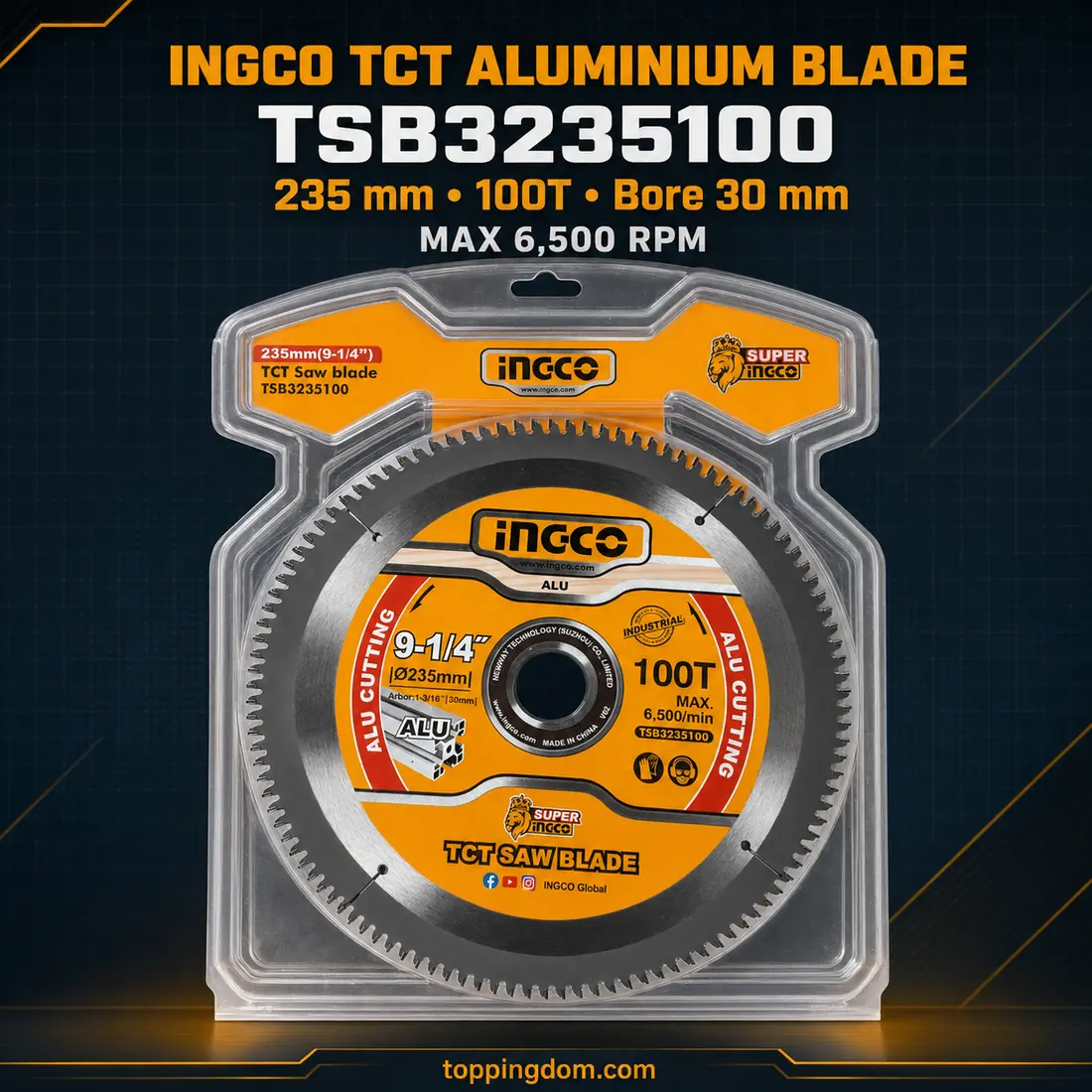

| Fine cutting of aluminium profiles | Purpose-labelled aluminium TCT blade | 235 mm; 100T; 30 mm bore | Non-ferrous application, clamping and RPM |

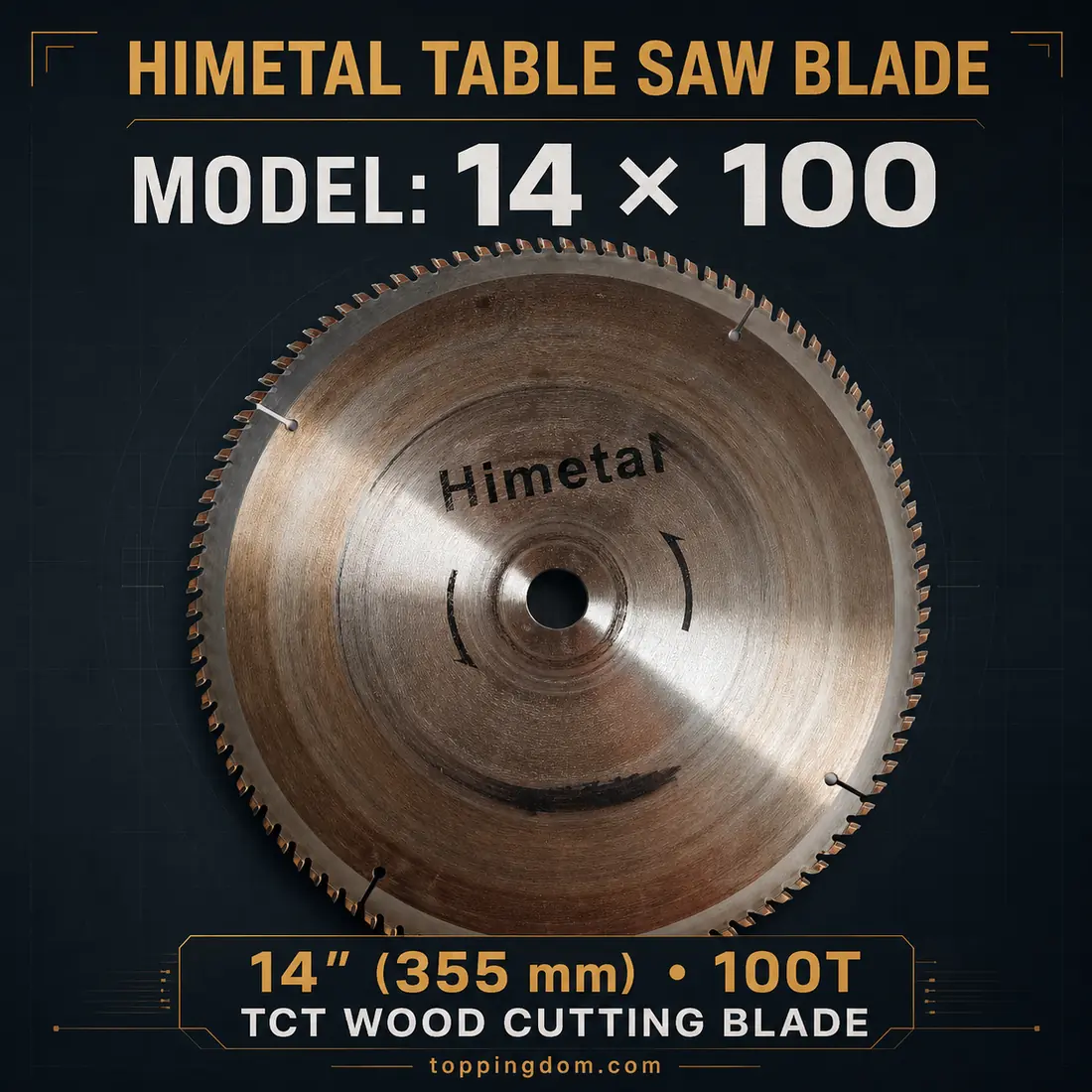

| Fine table-saw work | High-tooth-count table saw blade | 14-inch; 100T | Bore, kerf, riving knife and machine rating |
1. Understand the Numbers Printed on the Disc
A marking such as 230 × 2.0 × 22 mm normally means:
- 230 mm: outside diameter;
- 2.0 mm: disc thickness;
- 22 mm: centre bore or arbor hole.
All three dimensions matter. A disc that is too large may not fit inside the guard. The wrong bore may not centre correctly on the spindle. A thicker wheel may also be intended for grinding instead of cutting.
2. Cutting Discs and Grinding Discs Are Not Interchangeable
A cutting disc is relatively thin and designed to work on its edge. It is suitable for making a narrow cut through metal when the label approves that material. A grinding disc is thicker and designed for stock removal, weld dressing and edge preparation.
Using the side of a thin cutting disc for heavy grinding can overload it. Safety guidance for angle grinders says to use the correct wheel for the machine and job and not to use a cutting disc for grinding.
3. Choose a Circular Saw Blade by Material and Tooth Count
For a circular saw blade, the diameter and bore determine whether the blade can fit the machine, while the tooth design and tooth count influence the cutting application and finish.
- 24T wood blade: generally suited to faster ripping and general construction cuts.
- 60T wood blade: generally produces a cleaner crosscut or panel finish, although feed speed may be slower.
- 100T aluminium blade: a purpose-labelled high-tooth-count blade can give a finer cut in aluminium profiles when the workpiece is properly secured.
- 100T table saw blade: intended for fine work, but the machine bore, kerf and rated speed must still be confirmed.
4. Match the Wheel to the Machine Nameplate
Before ordering a replacement blade or wheel, photograph the accessory label and the machine nameplate. Compare:
- machine type;
- maximum permitted diameter;
- spindle or arbor size;
- maximum machine speed;
- guard capacity;
- material being cut.
This is especially important for 14-inch and 16-inch cut-off machines. Two wheels may look almost identical but use different centre holes, speeds or machine capacities.
5. Never Ignore the Maximum RPM
The wheel or blade must be rated for the operating speed of the tool. The accessory RPM rating should be at least as high as the machine’s rated speed. If the tool runs faster than the wheel is designed to withstand, the wheel may fail.
Safety check before every use: isolate the power before changing an accessory; inspect the wheel for cracks, chips, water damage or distortion; keep the correct guard installed; confirm the rotation direction; wear suitable eye and face protection; clamp the workpiece; and keep other people away from the cutting line. Follow the machine and accessory manufacturers’ instructions.
Common Questions
Can I use a grinding disc to cut metal?
A grinding disc is thick and intended mainly for grinding and material removal. Use a purpose-labelled cutting disc for slot cutting, provided its diameter, bore and RPM match the machine.
What is the difference between 24T and 60T saw blades?
On comparable wood blades, 24T usually cuts faster and is suitable for rougher ripping work. A 60T blade normally gives a cleaner finish for crosscuts and panels. Always confirm the blade’s stated material application.
What information should I send when requesting a quotation?
Send clear photos of the old blade and machine nameplate, plus the material, quantity, outside diameter, thickness or kerf, bore size, tooth count, machine RPM and delivery city.
Where can Nigerian buyers source replacement blades and discs?
Toppingdom helps Nigerian buyers source tools and industrial consumables from China, verify specifications, consolidate orders and arrange shipping to Nigeria.
